SCH20 STEEL REDUCER FITTING

1. Introduction

In plumbing systems, pipes are connected to each other using fittings, which come in different shapes, sizes, and materials. A reducer fitting is a type of fitting that is used to connect pipes of different sizes. SCH20 steel reducer fittings are made of steel and are designed to connect pipes with SCH20 thickness. In this article, we will discuss everything you need to know about SCH20 steel reducer fittings.

2. Definition of SCH20 Steel Reducer Fitting

SCH20 steel reducer fitting is a type of fitting that is used to connect pipes of different sizes with SCH20 thickness. It is designed to reduce the flow of fluid by connecting two pipes of different diameters. The fitting has a tapered design, with one end larger than the other. The larger end is connected to the larger pipe, while the smaller end is connected to the smaller pipe.

3. Applications of SCH20 Steel Reducer Fitting

SCH20 steel reducer fittings are used in a variety of applications in plumbing systems. They are commonly used in industrial and commercial plumbing systems, as well as in residential systems. Some of the applications of SCH20 steel reducer fittings include:

Water supply systems

Waste water systems

HVAC systems

Gas supply systems

Fire protection systems

4. Types of SCH20 Steel Reducer Fitting

There are two main types of SCH20 steel reducer fittings, which are:

4.1 Concentric Reducer

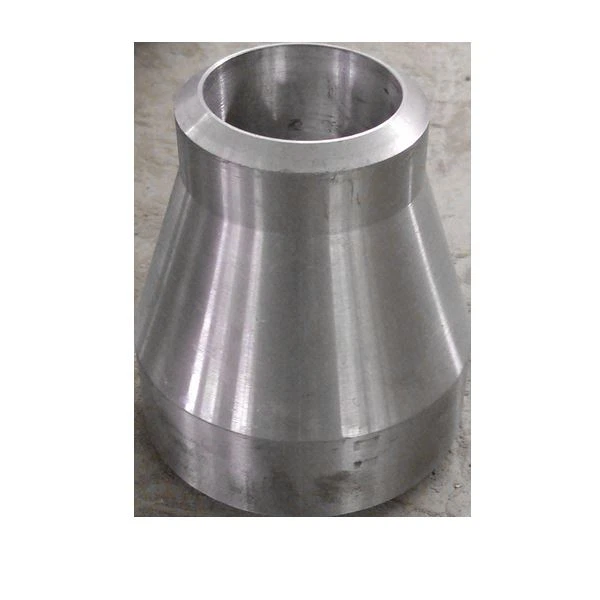

A concentric reducer is a type of SCH20 steel reducer fitting that has a conical shape. It is designed to connect pipes of different diameters with the center axis of the two pipes aligned. This type of reducer fitting is commonly used in vertical piping systems.

4.2 Eccentric Reducer

An eccentric reducer is a type of SCH20 steel reducer fitting that has an off-center alignment. It is designed to connect pipes of different diameters with the center axis of the two pipes misaligned. This type of reducer fitting is commonly used in horizontal piping systems.

5. Advantages of SCH20 Steel Reducer Fitting

There are several advantages of using SCH20 steel reducer fittings in plumbing systems, which include:

Durability: SCH20 steel reducer fittings are made of steel, which is a durable and long-lasting material.

Corrosion resistance: Steel is also resistant to corrosion, which means that the fittings will not rust or corrode easily.

High pressure and temperature resistance: Steel is capable of withstanding high pressures and temperatures, making it ideal for use in plumbing systems.

Easy to install: SCH20 steel reducer fittings.

6. Factors to Consider When Selecting SCH20 Steel Reducer Fitting

When selecting SCH20 steel reducer fittings, it's important to consider several factors to ensure that you choose the right fitting for your plumbing system. These factors include:

Material compatibility: Make sure that the SCH20 steel reducer fitting is compatible with the material of the pipes it will be connected to.

Diameter and thickness: Ensure that the fitting has the correct diameter and thickness to fit the pipes it will be connected to.

Type of fitting: Choose the correct type of reducer fitting, either concentric or eccentric, depending on the alignment of the pipes in your plumbing system.

Operating conditions: Consider the operating conditions of your plumbing system, such as pressure and temperature, and choose a fitting that can withstand those conditions.

7. Installation of SCH20 Steel Reducer Fitting

The installation of SCH20 steel reducer fittings is a straightforward process that can be completed with basic plumbing tools. Here are the steps to follow:

7.1 Preparation

Turn off the water supply or isolate the section of the plumbing system where the fitting will be installed.

Clean the ends of the pipes that will be connected to the fitting to ensure that they are free of debris, rust, or dirt.

7.2 Installation Steps

Apply Teflon tape or thread sealant to the threads of the fitting to ensure a tight seal.

Connect the larger end of the fitting to the larger pipe and the smaller end to the smaller pipe.

Use a pipe wrench to tighten the fitting onto the pipes, being careful not to overtighten and damage the fitting or the pipes.

Turn on the water supply and check for any leaks.

8. Maintenance of SCH20 Steel Reducer Fitting

To ensure that your SCH20 steel reducer fittings continue to function properly and last for a long time, it's important to perform regular maintenance. This includes:

Checking for leaks regularly and repairing any leaks immediately.

Inspecting the fittings for signs of corrosion or damage and replacing them if necessary.

Flushing the plumbing system regularly to remove any debris or sediment that may accumulate in the pipes and fittings.

9. Conclusion

SCH20 steel reducer fittings are an important component of plumbing systems, as they are used to connect pipes of different sizes with SCH20 thickness. They come in two main types, concentric and eccentric, and offer several advantages, including durability, corrosion resistance, and high pressure and temperature resistance. When selecting and installing SCH20 steel reducer fittings, it's important to consider several factors to ensure that you choose the right fitting for your plumbing system.

10. FAQs

Can SCH20 steel reducer fittings be used in gas supply systems?

Yes, SCH20 steel reducer fittings can be used in gas supply systems.

Can SCH20 steel reducer fittings be used in high-temperature applications?

Yes, SCH20 steel reducer fittings are capable of withstanding high temperatures.

Can SCH20 steel reducer fittings be reused?

It's generally not recommended to reuse SCH20 steel reducer fittings, as they can become damaged or corroded over time.

Can SCH20 steel reducer fittings be used with pipes of different materials?

It's important to ensure that the SCH20 steel reducer fitting is compatible with the material of the pipes it will be connected to.

How do I know if a SCH20 steel reducer fitting is the right size for my plumbing system?

You'll need to ensure that the fitting has the correct diameter and thickness to fit the pipes it will be connected to.
