Application:
Used for the connection between the tube end in chemical, construction, water supply, drainage, oil and gas, light and heavy industrial,
refrigeration, sanitation, plumbing, fire protection, electrical, aerospace, shipbuilding and other infrastructure projects
Type:
Welding Neck(WN), Plate(PL), Slip On(SO), Blind(BL), Socket Welding(SW),
Threaded(THc), LapJoint(LJ), Long Welding Neck(LWN)
Widely Used Material for Plate Flange:
Stainless Steel: A182 F304/310/316/317/321/347
Carbon Steel: A105
Alloy Steel: A182 F5/F9/F11/F22/F51/F53 INCONEL600 625 825
Common Flange Standard:
Common Flange Standard:
NO. | FLANGE STANDARD | SIZE | PRESSURE RATING | TYPES |
1 | ANSI/ASME FLANGE B16.5 | 1/2"-24" | LBS: 150 300 400 600 900 1500 2500 | SO.WN,SW,TH,LJ,BL |
2 | ORIFICE FLANGE B16.36 | 1"-24" | LBS: 300 400 600 900 1500 2500 | SO,WN,TH |
3 | LONG WELDING NECK FLANGES B16.5 | 1/2"-24" | LBS: 150 300 400 600 900 1500 2500 | LWN |
4 | ASMEB16.47-A(MSS FLANGE) | 26"-60" | LBS: 150 300 400 600 900 | WN,BL |
5 | ASME B16.47-B(API FLANGE) | 26"-60" | LBS: 75 150 300 400 600 900 | WN,BL |
6 | AWWA C207 FLANGE | 4"-120" | TABLE 2,3,4 CLASS B&D | SO,BL |
7 | API 590 FIG.8 FLANGE B16.48 | 1/2"-36" | LBS: 150 300 400 600 900 1500 2500 | FIG.8 |
8 | SPACER AND BLANK B16.48 | 1/2"-36" | LBS: 150 300 400 600 | SPACER AND BLANK |
9 | BS 4504 FLANGE | DN10-2000 | PN: 2.5 6 10 16 25 40 | CODE: 101 111 112 113 105 |
10 | SABS 1123 FLANGE | DN10-600 | KPA: 600 1000 1600 2500 4000 | SO.WN,SW,TH,LJ,BL |
11 | JIS B2220(KS B1503) FLANGE | DN10-1500 | 5K 10K 16K 20K 30K 40K | SO.WN,SW,TH,LJ,BL |
12 | GOST 12820/1-80 | DN15-1200 | PN: 1 1.6 2.5 4 6.3 10 | SO,WN |
13 | AS 2129 FLANGE | DN15-1200 | TABLE: D E F H | SO,BL |
14 | NS FLANGE | DN15-800 | PN: 6 10 16 40 | SO,BL |
15 | VSM FLANGE | DN15-200 | PN: 6 10 16 | SO,WN,BL |
16 | DIN FLANGE | DN10-4000 | PN: 1 2.5 6 10 16 25 40 64 100 160 250 320 400 | SO.WN,SW,TH,LJ,BL |
17 | EN1092 PL | DN10~DN600 | PN6 PN10 PN16 PN25 PN40 PN63 PN100 | TH SO WN BL |

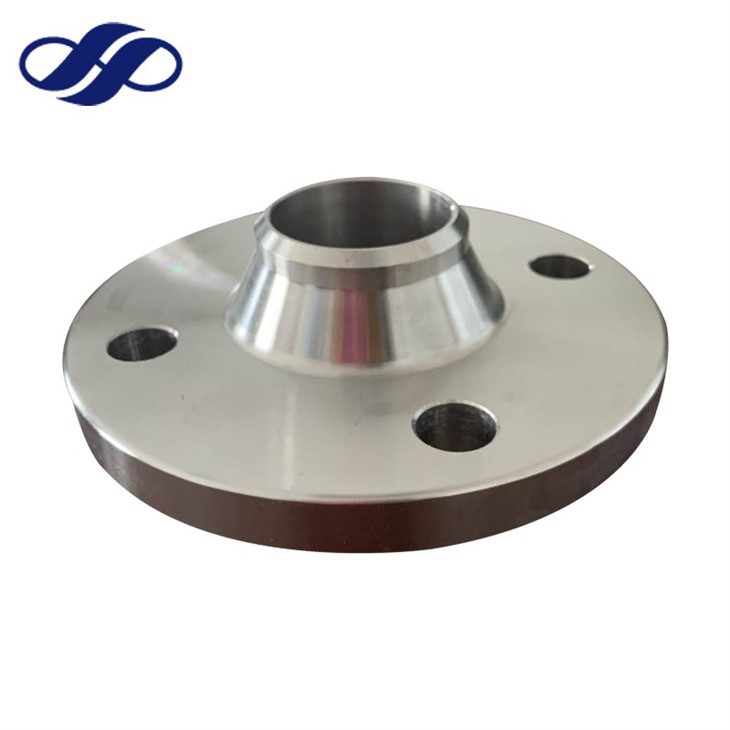

Understanding BS4504 DIN Pn16 316L
It is a flange standard that conforms to British and European standards, specifically British Standard BS4504 and German Standard DIN Pn16. The "316L" designation refers to the grade of stainless steel used in the flange construction, which is highly corrosion-resistant and suitable for demanding environments.
Features
BS4504 DIN Pn16 316L flanges possess several noteworthy features that make them a preferred choice in many industries. These features include:
Corrosion Resistance: The use of 316L stainless steel ensures excellent resistance to corrosion, making it ideal for applications involving harsh chemicals, saltwater, or high humidity.
High Temperature Resistance: It can withstand elevated temperatures, making them suitable for applications in industries such as oil and gas, chemical processing, and power generation.
Pressure Rating: The Pn16 pressure rating signifies the maximum pressure the flange can handle safely. BS4504 DIN Pn16 316L flanges offer reliable performance under moderate pressure conditions.
Versatility: These flanges are compatible with various pipe materials, including stainless steel, carbon steel, and non-ferrous metals, enhancing their versatility for different applications.
Applications
BS4504 DIN Pn16 316L flanges find widespread use in numerous industries due to their exceptional qualities. Some common applications include:
Petrochemical Industry: These flanges are widely used in petrochemical plants for connecting pipelines, valves, and equipment, ensuring secure and leak-free connections.
Food and Beverage Industry: BS4504 DIN Pn16 316L flanges meet the stringent hygiene requirements of the food and beverage industry, making them suitable for applications such as dairy processing, brewing, and food production.
Pharmaceutical Industry: The corrosion-resistant nature of 316L stainless steel makes these flanges a preferred choice in pharmaceutical manufacturing, where cleanliness and sterility are crucial.
Water Treatment: they are commonly employed in water treatment plants, providing reliable connections for pipes, pumps, and filtration systems.
Benefits
Enhanced Durability: The 316L stainless steel used in these flanges offers exceptional durability, ensuring long-lasting performance even in challenging environments. This reduces the need for frequent replacements and minimizes downtime.
Leakage Prevention: The precise engineering and tight sealing capability of it contribute to effective leakage prevention. This is particularly important in industries where leakages can lead to safety hazards, environmental contamination, or loss of valuable resources.
Corrosion Resistance: With its superior corrosion resistance, it provide added protection against rust, oxidation, and chemical attacks. This extends their lifespan and maintains the integrity of your piping systems.
Compatibility: These flanges are designed to be compatible with various pipe materials, allowing for seamless integration with existing systems. This versatility simplifies installation and retrofitting processes, saving time and reducing costs.
Compliance with Standards: they adhere to recognized British and European standards, ensuring compliance with industry regulations. This provides you with the assurance of using reliable and quality products in your operations.
Installation and Maintenance
Proper installation and regular maintenance are crucial for optimizing the performance of it. Here are some key considerations:
Installation: Follow the manufacturer's guidelines and specifications for correct installation. Ensure proper alignment, bolt torquing, and gasket selection to achieve a secure and leak-free connection.
Regular Inspections: Perform periodic inspections to identify signs of wear, corrosion, or damage. Promptly address any issues to prevent further deterioration and maintain the flanges' integrity.
Gasket Replacement: Over time, gaskets may deteriorate, compromising the seal. Regularly inspect and replace gaskets when necessary to maintain the effectiveness of the flange connections.
Corrosion Protection: Implement corrosion protection measures, such as coatings or cathodic protection, to further enhance the longevity of BS4504 DIN Pn16 316L flanges, especially in corrosive environments.
Comparison with Other Flange Standards
While BS4504 DIN Pn16 316L offers excellent performance, it's important to consider other flange standards and their suitability for specific applications. Here's a comparison:
ANSI/ASME Flanges: ANSI/ASME flanges are widely used in North America and offer compatibility with American piping systems. However, they may not provide the same level of corrosion resistance as it in certain environments.
JIS Flanges: JIS flanges are commonly used in Japanese industries. They have their own unique specifications and may not be directly interchangeable with BS4504 DIN Pn16 316L flanges. Consider the specific requirements of your application when choosing between the two.
EN Flanges: EN flanges conform to European standards and are comparable to it. However, they may have slight variations in dimensions and pressure ratings. Ensure compatibility and compliance with your project specifications.
Common Challenges and Solutions
While they offer numerous advantages, certain challenges may arise. Here are some common challenges and their solutions:
Flange Leakage: Improper installation, inadequate bolt torquing, or damaged gaskets can lead to flange leakage. Ensure proper installation techniques, use suitable gaskets, and perform regular inspections to address any leakage issues promptly.
Corrosion: Despite its corrosion resistance, it can still be susceptible to corrosion in certain aggressive environments. Implement corrosion prevention measures such as regular inspections, protective coatings, or cathodic protection systems to mitigate this issue.
Material Compatibility: When connecting they with pipes or equipment made from different materials, compatibility issues may arise. Ensure proper material selection and consider using appropriate gaskets or transition components to overcome compatibility challenges.
Temperature and Pressure Limitations: While they have a moderate pressure rating, they may not be suitable for extremely high-pressure or high-temperature applications. Evaluate your system requirements and consult with experts to select the right flange standard for such demanding conditions.
Tips for Selecting and Purchasing BS4504 DIN Pn16 316L
When choosing they for your projects, consider the following tips:
Evaluate Application Requirements: Assess the specific needs of your application, including operating conditions, pressure, temperature, and compatibility with other components. This ensures the chosen flanges can meet the demands of your system.
Quality Assurance: Purchase flanges from reputable manufacturers or suppliers who adhere to stringent quality control measures. Look for certifications and compliance with relevant standards to ensure you receive reliable and high-quality products.
Seek Expert Advice: If you're uncertain about the selection or installation process, consult with professionals or engineers experienced in flange systems. Their expertise can help you make informed decisions and avoid potential issues.
Cost Considerations: While cost is a factor, prioritize quality and reliability over price alone. Investing in durable and corrosion-resistant BS4504 DIN Pn16 316L flanges can result in long-term cost savings by reducing maintenance, replacements, and downtime.
Maintenance Support: Inquire about the availability of maintenance services or technical support from the manufacturer or supplier. Having access to expert assistance can be beneficial for proper maintenance and troubleshooting.
FAQs
Are they suitable for high-temperature applications?
Yes, they are designed to withstand elevated temperatures, making them suitable for various high-temperature industrial applications.
Can I use they with pipes made from different materials?
Yes, they are compatible with various pipe materials, including stainless steel, carbon steel, and non-ferrous metals.
How can I prevent corrosion in it?
Implement corrosion prevention measures such as regular inspections, protective coatings, or cathodic protection systems to minimize the risk of corrosion.
Are they interchangeable with ANSI/ASME flanges?
While BS4504 DIN Pn16 316L and ANSI/ASME flanges have some similarities
