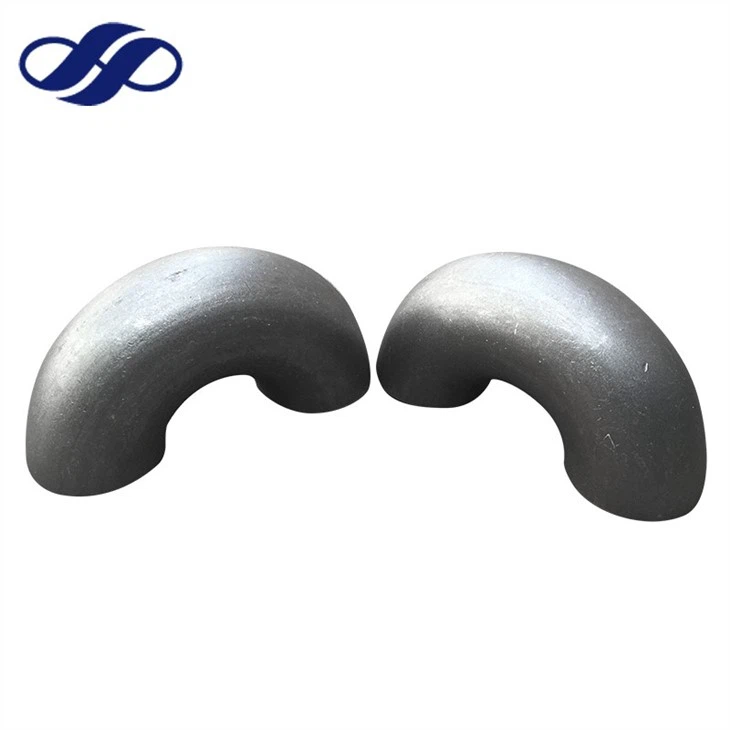

elbow (3)

SCH120 STEEL ELBOW FITTING

1. What is elbow? It refers to the pipe fitting that changes the direction of the pipe in the pipe system. Elbows are divided into three types according to angle: 45 °, 90 ° and 180 °. In addition, according to the needs of the project, there are other abnormal angles such as 60 °. 2. According to the production process, it can be divided into welding elbow, stamping elbow, push elbow, casting elbow, etc. The materials of elbows include cast iron, stainless steel, alloy steel, malleable cast iron, carbon steel, nonferrous metals and plastics.

Product Introduction

Fabrication method of elbow

1. Stamping

According to different materials, cold pressing or hot pressing can be selected to put the tube blank into the outer mold. After the upper and lower molds are combined, the tube blank moves along the gap reserved between the inner mold and the outer mold under the push of the press to complete the forming process.

2. Medium plate welding

The medium plate welding is aimed at the production of large elbows. First cut two medium plates, and then press them into half of the elbow profile with a press, and then weld the two profiles together. In this way, the elbow will have two welds. Therefore, after the fabrication, the welds must be tested to meet the standard.
