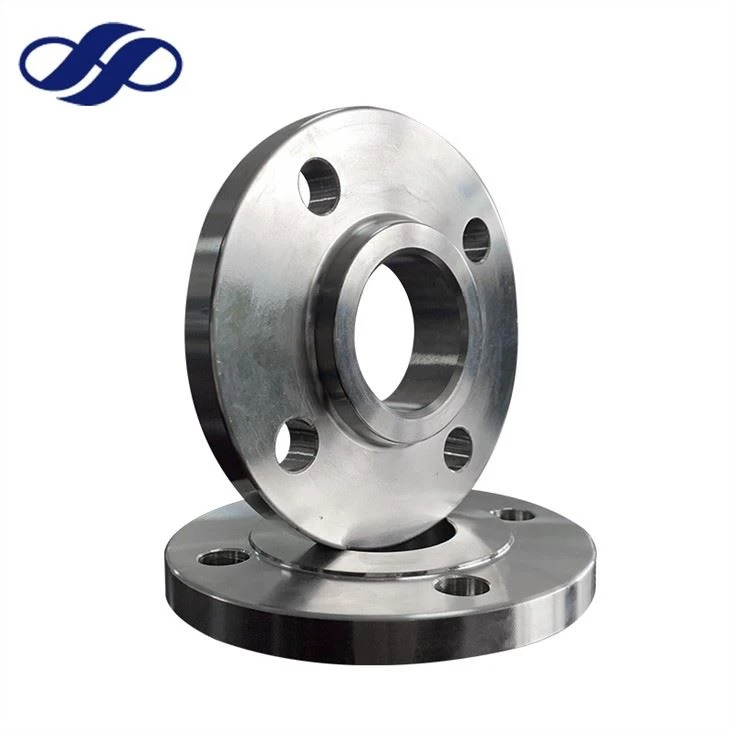

ANSI B16.5 A182 F304 Socket Weld Flange
Product introduction
Socket weld pipe flange is like a slip on flange,it is used specially for small sizes piping systems.The shape of a socket welding flange is like a slip on flange with a block in the inner bore of the flange which name is socket. And the socket thickness is common same with the pipe thickness.
Initially, a Socket Weld flange was developed for use in small-size high pressure piping. The static strength of a socket weld is equal to Slip On flanges. However, the fatigue strength of an ASME B16.5 Socket Weld Flange is almost 50% greater than a double-welded Slip On flange. Flanges and their corresponding fittings are produced under standard ASME B16.5 must conform to the recommendations such as pressure-temperature ratings, tolerances, marking, testing, and methods of designating openings. Moreover, a manufacturer must also use appropriate materials along with PN16 600# Socket Weld Pipe Flanges Dimensions, to produce these flanges and flanged fittings.
The connection of a flange to the pipe is done with 1 fillet weld, performed on the outside of the flange. But before welding, space must be created between 2 inch Socket Weld Reducing Flange or fitting and pipe. The purpose of the bottoming clearance in a Socket Weld is generally to decrease the residual stress at the root of the weld, which could occur during the solidification process of the weld metal.
Chemical Composition
| C | Mn | Si | P | S | Cr | Ni |
| 0.03 | 2.0 | 0.75 | 0.045 | 0.03 | 18-20 | 8-10.5 |
Mechanical Properties
| Tensile Strength | Yield Strength | Elongation |
| 515 (Mpa) | 205 (Mpa) | 40 (%) |
Name: Raised Face Socket Weld Flange.
Type: Socket Weld Flange.
Material: Stainless Steel A182 F304
Standard: ASME 16.11 , MSS SP-79, 83, 95,97, BS3799
Size: 1/8"~4" (DN6~DN100)
Pressure: 3000LBS, 6000LBS, 9000LBS
Packing: Wooden Cases.
