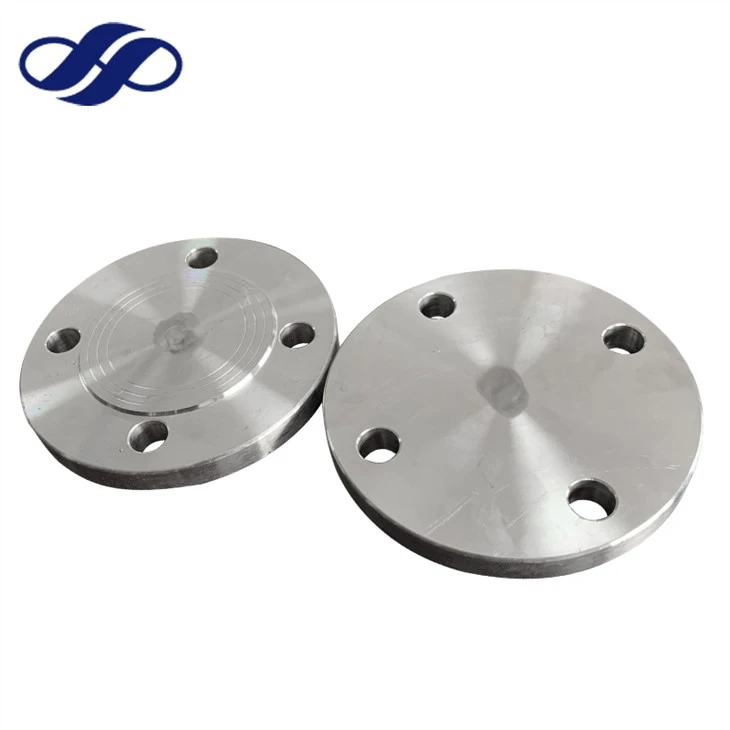

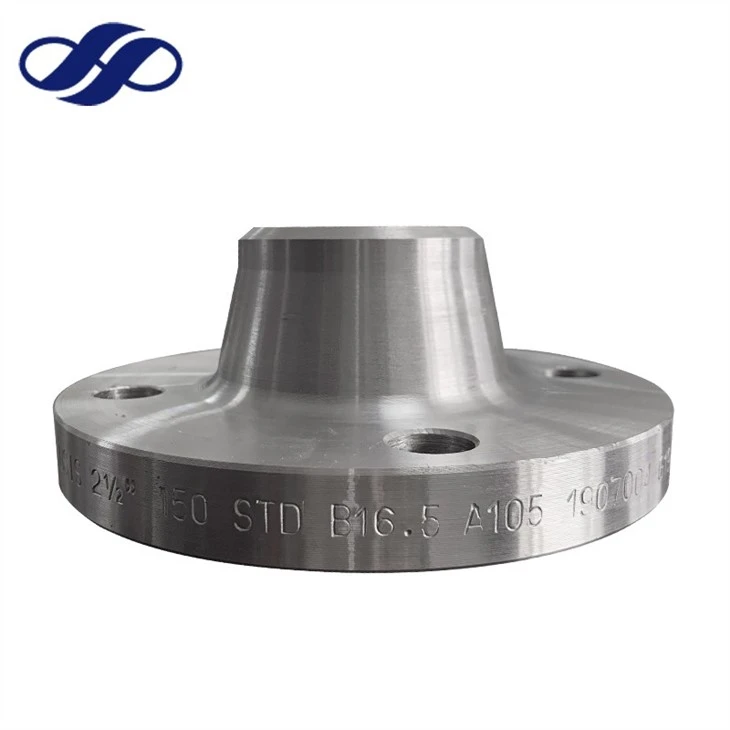

Vacuum Flanges and Hardware Components Flanges are a basic and essential parts in vacuum chamber equipment. Mainly divided to CF and ISO (KF,LF) structures. Weld Neck flange, Slip On flange, Blind flange, Threaded flange, Socket Weld flange, Lap Joint flange, Ring Joint flange, Plate flange, Spectacle blind, LWN, Tube Sheet, Orifice flange, Anchor flange. UHV CF Flanges/ ISO Flanges ISO Flange/ Mounting Hardware SGJ Ultra High Vacuum CF flanges match to the industry standard, means copper gasket + vacuum flanges sealing principle. No through-hole in the flanges body, so called blank flanges. The temperature range if from -200ºC to 450ºC. SGJ also provide Vacuum flanges with through-holes, Cu gaskets, O-rings, Claw clamps, Hinge clamps, Bolt, and so on.

Product Introduction

flange sus 304

Be sure that companion flanges to be mated with the flanges of the expansion joint are clean. Used parts should be carefully examined for reasonable smoothness, and any adhering particles of old gasketing or other foreign material should be scraped off, taking care not to gouge or mutilate the flange surface. When attaching beaded end flange expansion joints to raised face flanges,the use of ring gaskets are required to prevent metal flange faces from cutting the rubber bead during installation.

Model NO.

HQFF

Manufacturing Way

Forging

Pressure

Class 150, Class 300, Class 600, Class900

Certificate

CE, ISO

Inspection

BV, SGS

Test

Ut/PT/Mt
