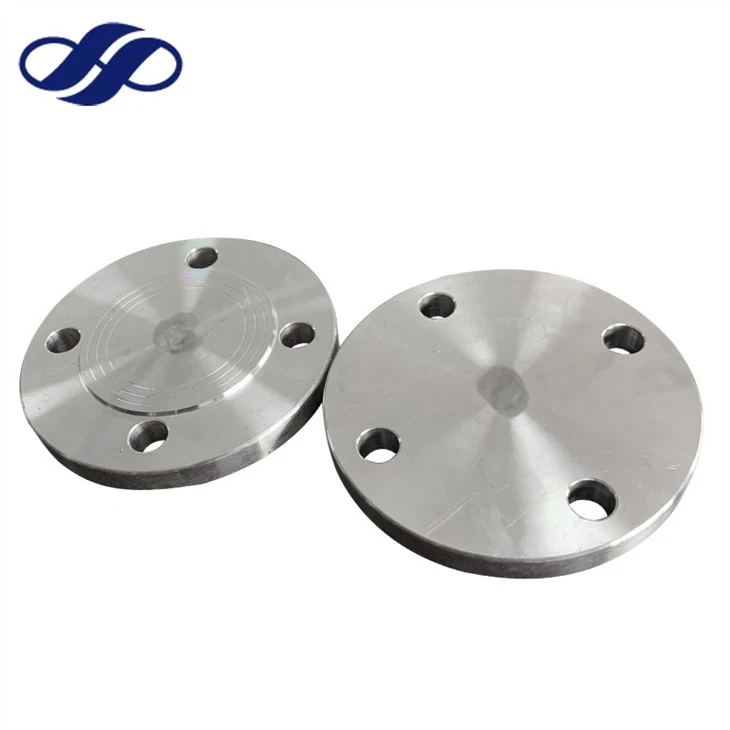

CLASS1500 STEEL FLANGE

NO. FLANGE STANDARD SIZE PRESSURE RATING TYPES 1 ANSI/ASME FLANGE B16.5 1/2"-24" LBS: 150 300 400 600 900 1500 2500 SO.WN,SW,TH,LJ,BL 2 ORIFICE FLANGE B16.36 1"-24" LBS: 300 400 600 900 1500 2500 SO,WN,TH 3 LONG WELDING NECK FLANGES B16.5 1/2"-24" LBS: 150 300 400 600 900 1500 2500 LWN 4 ASMEB16.47-A(MSS FLANGE) 26"-60" LBS: 150 300 400 600 900 WN,BL 5 ASME B16.47-B(API FLANGE) 26"-60" LBS: 75 150 300 400 600 900 WN,BL 6 AWWA C207 FLANGE 4"-120" TABLE 2,3,4 CLASS B&D SO,BL 7 API 590 FIG.8 FLANGE B16.48 1/2"-36" LBS: 150 300 400 600 900 1500 2500 FIG.8 8 SPACER AND BLANK B16.48 1/2"-36" LBS: 150 300 400 600 SPACER AND BLANK 9 BS 4504 FLANGE DN10-2000 PN: 2.5 6 10 16 25 40 CODE: 101 111 112 113 105 10 SABS 1123 FLANGE DN10-600 KPA: 600 1000 1600 2500 4000 SO.WN,SW,TH,LJ,BL 11 JIS B2220(KS B1503) FLANGE DN10-1500 5K 10K 16K 20K 30K 40K SO.WN,SW,TH,LJ,BL 12 GOST 12820/1-80 DN15-1200 PN: 1 1.6 2.5 4 6.3 10 SO,WN 13 AS 2129 FLANGE DN15-1200 TABLE: D E F H SO,BL 14 NS FLANGE DN15-800 PN: 6 10 16 40 SO,BL 15 VSM FLANGE DN15-200 PN: 6 10 16 SO,WN,BL 16 DIN FLANGE DN10-4000 PN: 1 2.5 6 10 16 25 40 64 100 160 250 320 400 SO.WN,SW,TH,LJ,BL 17 EN1092 PL DN10~DN600 PN6 PN10 PN16 PN25 PN40 PN63 PN100 TH SO WN BL
