Wn Flange

The international pipe flange standard mainly has two systems, namely the European pipe flange system represented by German DIN (including the former Soviet Union) and the American pipe flange system represented by American ANSI pipe flange. In addition, there are Japanese JIS pipe flanges, but in petrochemical installations generally only used for public works, and the international impact is small. The pipe flanges of various countries are introduced below: 1, to Germany and the former Soviet Union as the representative of the European system pipe flange 2. American system pipe flanges, represented by ANSI B16.5 and ANSI B 16.47 3, British and French pipe flange standards, two countries each have two pipe flange standards. To sum up, the international standard of pipe flanges can be summarized as two different and not interchangeable pipe flange systems: a European pipe flange system represented by Germany; Another is the American pipe flange system represented by the United States.

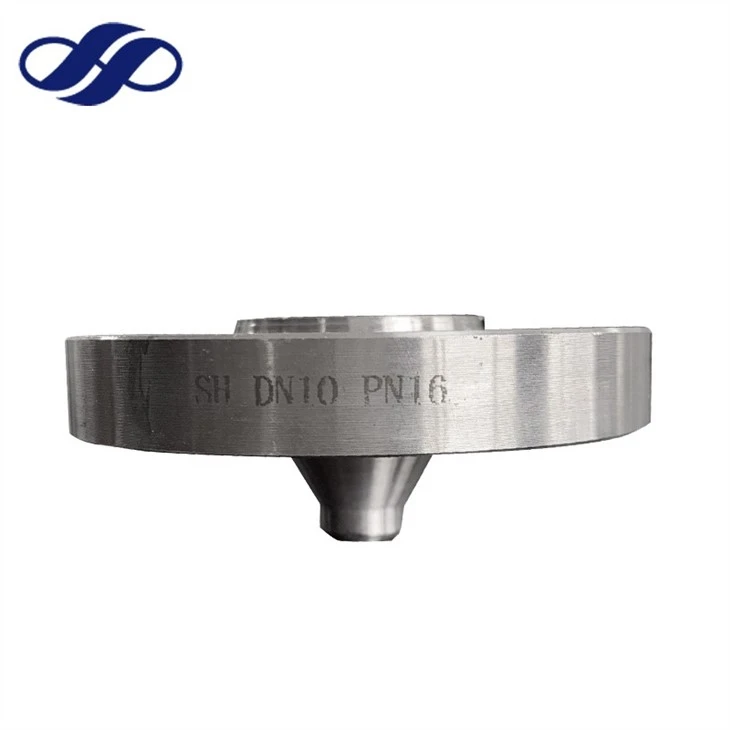

asme b16.5 wn flange dimensions weld neck flange bore dimensions

Due to the transition structure of conical neck and butt welding connection, the strength and stiffness of the flange are strengthened, and the sealing performance is better than that of the flat welding flange. The disadvantage is the need to use forgings manufacturing, consumption of materials, manufacturing costs. Suitable for high pressure, high temperature or high sealing requirements.

Product Name: WN Flange, asme b16.5 Class150

Standard: AISI, DIN, JIS

Material: Carbon Steel & Stainless Steel & Inconel Alloy

Product Size: 1/2" - 36"

Pressure Ratings: ANSI Class 150, 300, 600, 900, 1500 and 2500

DIN PN 6, PN 10, PN16, PN25, PN40 and PN64

JIS 5K, 10K, 16K and 20K

Surface: Varnished transparent oil, rust-proof oil, hot galvanizing

Application: Construction, industrial material

PACKING: In wooden cases, wooden pallets or as per customers special requirement

1. Face Type: Available of raised face(RF), full face(FF), Ring joint(RTJ) , Groove, Tongue, or customized.

2.Seal face: smooth face, waterlines, serrated finished
3.CNC fine finished.

Face finish: Arithmetical Average Roughness Height(AARH).
The finish is determined by the standard used.
ANSI B16.5 specifies face finishes within a range 125AARH-500AARH(3.2Ra to 12.5Ra).
Other finishes on requst
1.6 Ra max,1.6/3.2 Ra, 3.2/6.3Ra or 6.3/12.5Ra.
The range 3.2/6.3Ra is most common

Quality Control

Our quality control department consists of experienced technicians. These personal strictly control the whole production procedure, from introduction of raw materials to finish products. They ensure high quality products for our customers.

Packaging & Delivery

Packaging Detail: In wooden cases, wooden pallets or as per customers special requirement

Delivery Detail: 7~25 Day

Your inquiry will be highly appreciated!

Please contact me without any hesitation if you are interested in our products!

We will offer warm-hearted service to you!
