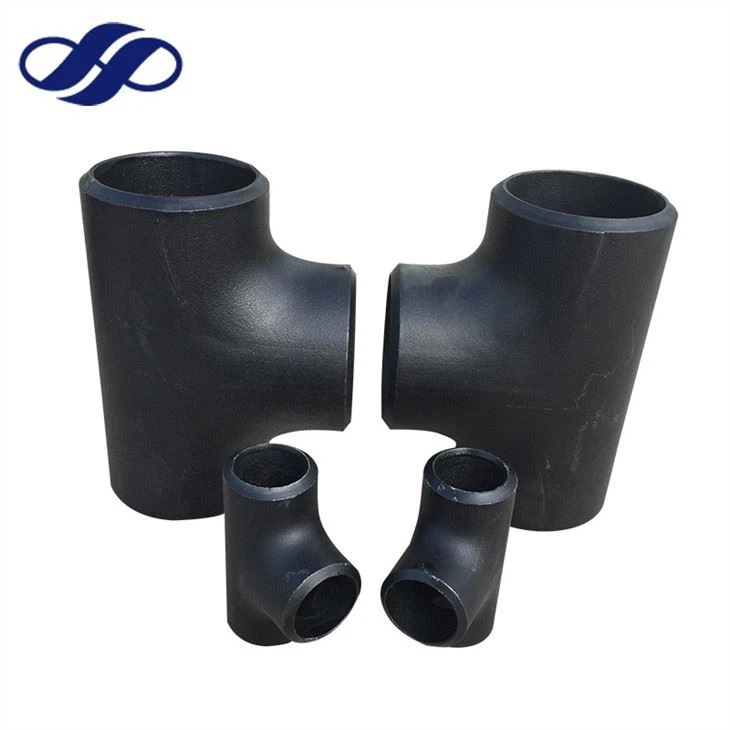

The tee has three openings, namely, one inlet and two outlets; Or a kind of chemical pipe fitting with two inlets and one outlet, including T-shaped and Y-shaped pipe fittings, equal diameter pipe fittings and reducing pipe fittings, which are used at the junction of three identical or different pipes. The main function of the tee is to change the direction of the fluid
Welding requirements for longitudinal straight weld and circumferential fillet weld. The longitudinal straight weld of the split tee should be added with a backing plate and should not be directly welded with the base metal of the pipe. The butt tee and the circumferential fillet weld of the pipe should be in the form of overlaying welding. The form and sequence of the circumferential fillet weld overlaying welding should be in accordance with the company's regulations, calculated according to the stack counting method, and marked in advance. When the thickness of the split tee is less than 1.4 times the thickness of the parent pipe, the height and width of the weld fillet shall be X1. When the thickness of the split tee is greater than 1.4 times the thickness of the parent pipe, the size of the circumferential fillet weld fillet shall be X2, and the thickness of the split tee that is higher than X2 shall be polished outward and form an included angle of 45 degrees (see the table attached to the company for the values of X1 and X2, and the coefficients of different materials are different).
